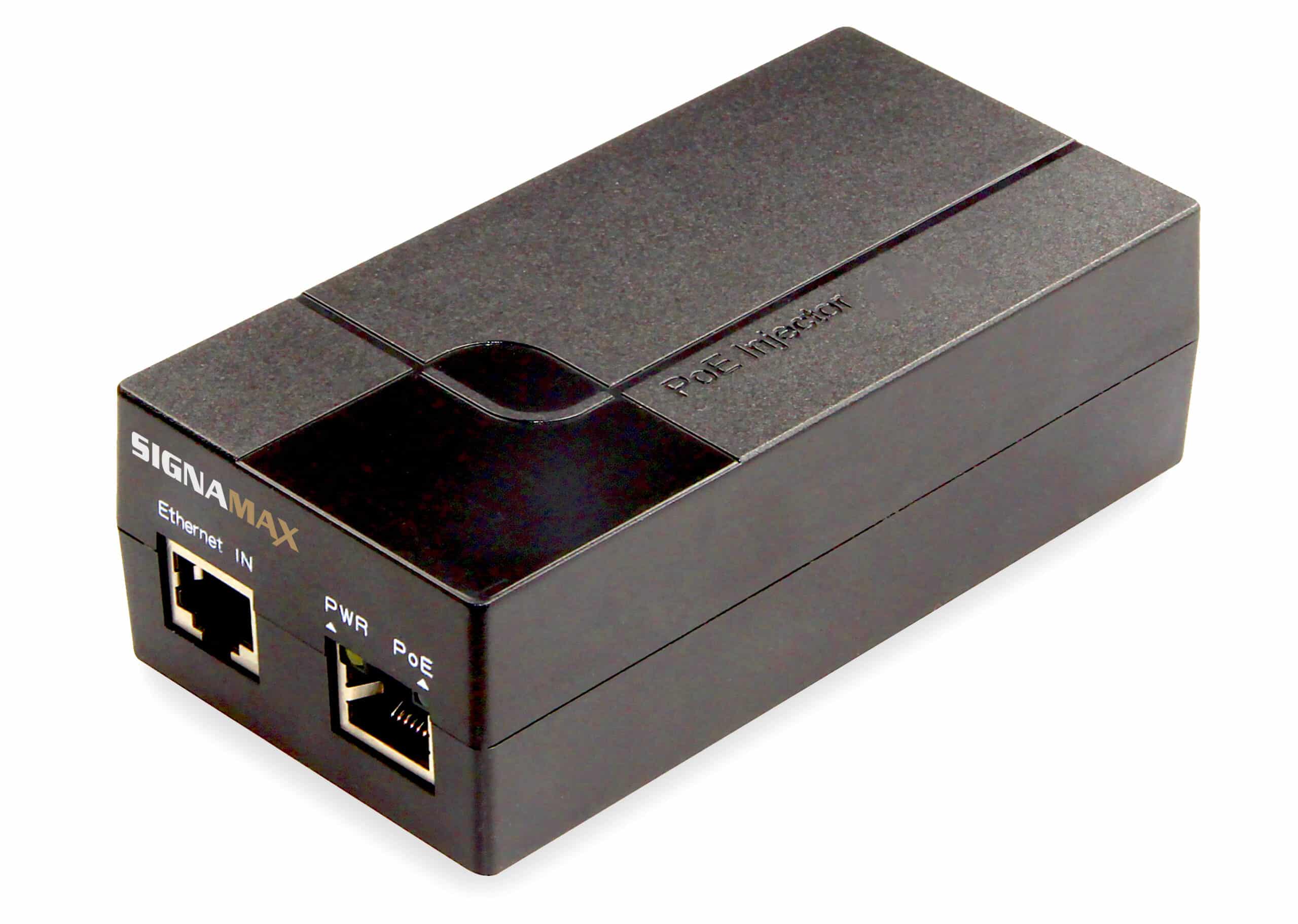

C-100 Gigabit PoE+ Injector

Download Specifications

• PORTS

RJ-45 (Downlink): 1 10/100/1000
PoE: 1

• PoE

Budget: 30W
Support IEEE 802.3af/IEEE802.3at on each port
Dynamic Power Allocation

• ELECTRICAL CHARACTERISTICS

Max Power Consumption: 35W
Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
MTBF: 100K hrs

• PHYSICAL CHARACTERISTICS

Dimensions: 4.7” W x 2.4” D x 1.5” H (11.8 cm x 6 cm x 3.8 cm)
Weight: 0.40 lb (0.18 kg)

• ENVIRONMENTAL REQUIREMENTS

Operating Temperature: 14 to 131°F (-10 to 55°C)
Storage Temperature: -40 to 158°F (-40 to 70°C)
Operating/Storage Humidity: 5 to 95% (non-condensing)

• CERTIFICATIONS

CE Mark: EN 55022, Class B; FCC Part 15 Class B; VCCI Class B
Safety: CE/LVD EN60950

• WARRANTY

Five years (Including power supply)
